CH-XSBC Cantilever weight sensor

Features: CH-XSBC cantilever weighing sensor made of high quality alloy steel, with high precision, high stability and other characteristics, easy to install, fast, suitable for mixing station, belt scale, batching scale and platform scale, etc.

OnlineTel
156-2185-0939
Product intro

Product

Product Name:CH-XSBC 懸臂梁式稱重傳感器


Product Features:CH-XSBC懸臂梁式稱重傳感器采用優(yōu)質(zhì)合金鋼材質(zhì),具有高精度、高穩(wěn)定性等特點,安裝簡便、快速,適用于攪拌站、皮帶秤、配料秤和平臺秤等。


Range:5kN(500kg)、10kN(1t)、20kN(2t)、30kN(3t)


Dimensions:

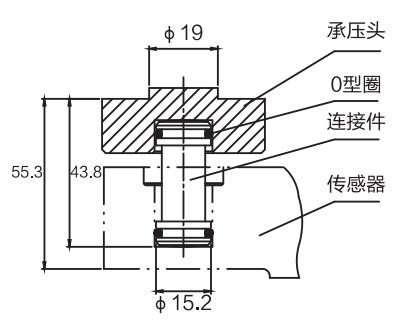

Attachment size:


Specifications:

Specifications




Rated Output

2.0mV/V±1%

Zero Balance

±1%F.S

Comprehensive Precision

0.03%F.S

Input Impedance

380±5Ω

Linearity/ Hysteresis

±0.03%F.S

Output Impedance

350±3Ω

Repeatability

±0.03%F.S

Insulation Impedance

≥5000MΩ

Creep

±0.03%F.S/30min

Recommended Excitation Voltage

5~15V/DC

Temp. Effect On Zero

±0.03%/10℃

Compensated temp. Range

-30℃~+70℃

Temp. Effect On Output

±0.03%/10℃

Safe Overload

150%F.S

Connection

Excitation:+ Red - Black        Shield: Thick Yellow

Signal: + Green - White
